MALHATY PUMP MFG.CO.

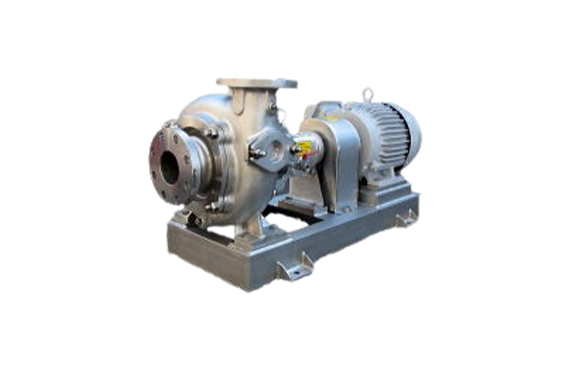

Malhaty Pump FLS
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: FLS
Features
- Capable of transferring fragile solids in size of about 50 to 70% of the nominal diameter of the pump without damage.
- The impeller is a symmetrically designed, non-clogging type with two passages.
- Easy assembly/disassembly and maintenance by back pull-out structure.
Materials
| FLS-FG・FLS-FM | FLS-27G・FLS-27M | FLS-32G・FLS-32M | |
|---|---|---|---|
| Casing | FC200 | SCS13 | SCS14 |
| Impeller | FC200 | SCS13 | SCS14 |
| Shaft | S45C | SUS304 | SUS316 |
| Sleeve | SUS304 | SUS304 | SUS316 |
Specification
| N.B. | 40×40mm ～ 150×150mm |
| Discharge Volume | 80L/min ～ 5000L/min |
| Total Head | 5m ～ 38m |
| Shaft Seal | Mechanical Seal/Gland Packing |
| Motor Pole | 6P（950min⁻¹/50Hz 1150min⁻¹/60Hz） 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz） |
