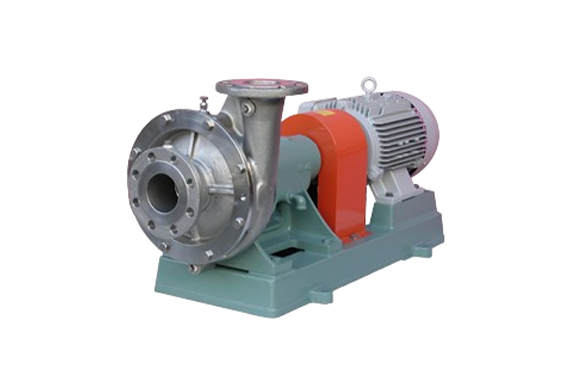

Malhaty Pump FX, 2FX, 2FXH High Head
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: FX, 2FX, 2FXH
Features
- The standard impeller is a closed type. Semi-open type is also available upon request.
- A countermeasure can be provided to prevent fiber slurry in the liquid from winding around the impeller.
- The shaft seals and materials can be customized to meet pumped liquids.
- Amazing Durability.
- The high head model is equipped with an oil bath bearing.
Materials
| FX-27 2FX(H)-27 | FX-32 2FX(H)-32 | FX-16 2FX(H)-16 | |
|---|---|---|---|
| Casing | SCS13 | SCS14 | SCS16 |
| Impeller | SCS13 | SCS14 | SCS16 |
| Shaft | SUS304 | SUS316 | SUS316L |
| Sleeve | SUS304 | SUS316 | SUS316L |
| Cover Packing | PTFE | ||
Specification
| Bore | 40×32mm 〜 125×100ｍｍ |
| Discharge Volume | 80L/min 〜 2000L/min |
| Total Head | 7m 〜 110m |
| Shaft Seal | Mechanical Seal/Gland Packing |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) |
