MALHATY PUMP MFG.CO.

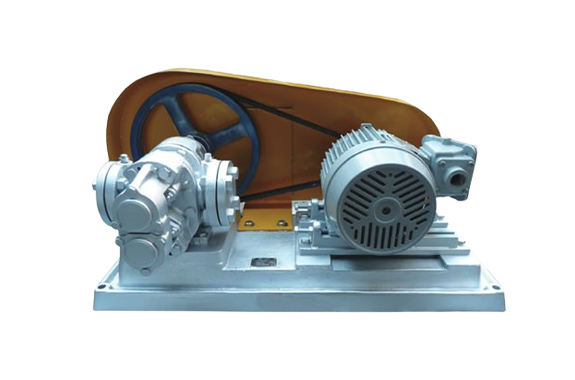

Malhaty Pump HG
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: HG
Features
- The bearing does not contact any liquid because it is attached externally. Suitable for transferring viscous liquids with no lubricity.
Materials
| HG | HG-27 | HG-32 | |
|---|---|---|---|
| Casing | FC200 | SCS13 | SCS14 |
| Gear | FC200 | SCS13 | SCS14 |
| Shaft | S45C | SUS304 | SUS316 |
| Metal | Ball Bearing(attached externally) | ||
Specification
| Bore | 25×25mm ～ 100×100mm |
| Discharging volume | 50Lmin ～ 1000L/min（heavy oil B 35℃ 200mPa・s） |
| Total Head | 0.2MPa ～ 1.0MPa（Varying by type of shaft seal） |
| Shaft Seal | Mechanical Seal/Gland Packing |
| Motor pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
| Rotational Speed | 400min⁻¹（V-belt driven） |
| HG-B | with an integrated safety valve(direct-coupled type) |
| HG-W | Fitted with heating jacket |
