MALHATY PUMP MFG.CO.

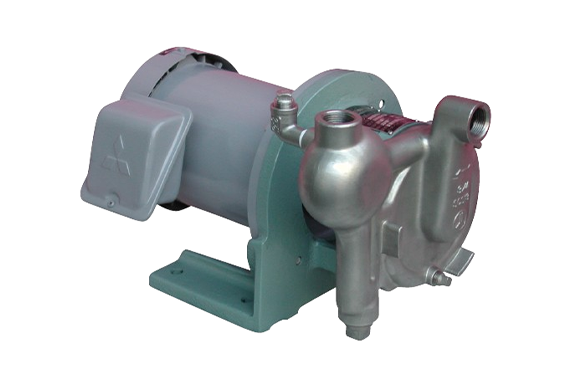

Malhaty Pump Integrated Motor Type MSG2-FR, MSM2-FR
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: MAPS, 2MAPS
Features
- Low pricing by saving cost.
- Lightweight & compact design.
- Standard Impeller: Semi-Open type.
- The integrated motor requires no alignment.
- No valve type – a check valve is not required.
Materials
| MSG2-27FR MSM2-27FR | MSG2-32FR MSM2-32FR | |
|---|---|---|
| Casing | SCS13 | SCS14 |
| Impeller | SCS13 | SCS14 |
| Shaft | SUS316 | SUS316 |
| Cover Packing | PTFE | |
Specification
| Bore | 20×20mm | |
| Discharge Volume | 15L/min 〜 50L/min | |
| Total Head | 2.5m 〜 18m | |
| Shaft Seal | Mechanical Seal/Gland Packing | |
| Motor pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) | |
