MALHATY PUMP MFG.CO.

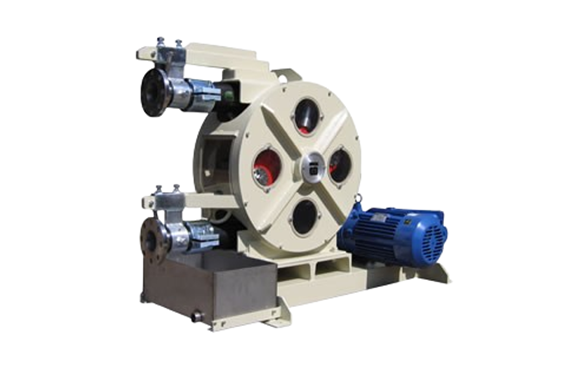

Malhaty Pump KB
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: KB
Features
- Most suitable for transfer of solid, fiber-contained liquids
- Transfer of high-viscosity liquids, high-concentration liquids
- Excellent discharge and suction power
- The pump is a sealless type. The only wetted part is the tube.
- The pump performance can be recovered 100% by replacing only the tube.
- A long pump life can be achieved by rotating the tube with the rotating drive lever and changing the position where fatigue and wear on the tube are happening.
- The demonstration unit is available upon request. Please feel free to contact us.
Materials
| KB | |
|---|---|
| Tube | NR（Natural Rubber）・NBR（Nitrile）・NBR（Nitrile for food use) |
| Drum | SS400 |
| Inlet/Outlet Metal Fittings | SS400・PVC・SUS304・SUS316・SUS316L |
Specification
| Bore | 12mm ～ 125mm |
| Discharge Volume | 1.55L/min ～ 1200L/min（Standard Rotation Speed) |
| Discharge Pressure | 1.5MPa ～ 2.5MPa（varying by models) |
| Standard Rotational Speed | 30min⁻¹ ～ 35min⁻¹ |
| Inlet/Outlet Connection | One-Touch Joint, Flange joint to JIS Standards, Taper pipe threads, and Sanitary joint |
