MALHATY PUMP MFG.CO.

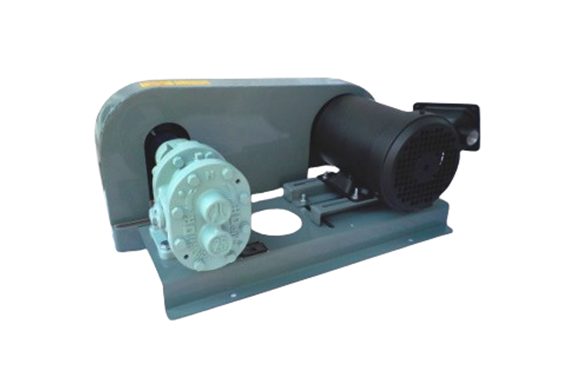

Malhaty Pump Lockless Pump OR
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: Lockless Pump OR
Features
- Equipped with complete one-point continuous contact gear.
- The unique gear design solves the Containment phenomenon and cavitation at the same time.
- Quiet without vibration.
Materials
| OR | |
|---|---|
| Casing | FC200 |
Gear | FC200 |
| Shaft | S45C |
Specification
| Bore | 20mm 25mm 32mm 40mm 50mm |
| Dicharge Volume | 16L/min ～ 280L/min（Kerosene, Diesel oil） |
| Total Head | 0.1MPa ～ 0.3MPa |
| Shaft Sealing | Gland Packing/Mechanical Seal |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
| Rotational Speed | 20・25mm/550min⁻¹、32mm/500min⁻¹、40・50mm/400min⁻¹ |
