MALHATY PUMP MFG.CO.

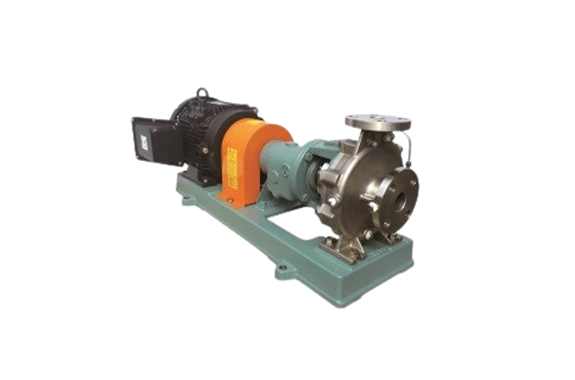

Malhaty Pump MAP,2MAP
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: MAP,2MAP
Features
- Low NPSH-Re.(compared to our other models)
- Viscosity: up to 450mPa・s.
- A full open impeller, provided with this model, applies to the transfer of solid mixed liquids.
- The back pull-out type enables easy disassembly and inspection without disconnecting piping.
- Various customizing are available, such as selecting shaft seal type, attaching sleeves, etc.
- The demonstration unit is available. Please feel free to contact us.
Materials
| MAP-27 2MAP-27 | MAP-32 2MAP-32 | MAP-16 2MAP-16 | |
|---|---|---|---|
| Casing | SCS13 | SCS14 | SCS16 |
| Impeller | SCS13 | SCS14 | SCS16 |
| Shaft | SUS304 | SUS316 | SUS316L |
| Cover Packing | PTFE | ||
Specification
| Bore | 40×32mm ～ 150×125mm |
| Discharge Volume | 25L/min 〜 5500L/min |
| Total Head | 5m 〜 110m |
| Shaft Seal | Mechanical Seal/Gland Packing |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz） |
