MALHATY PUMP MFG.CO.

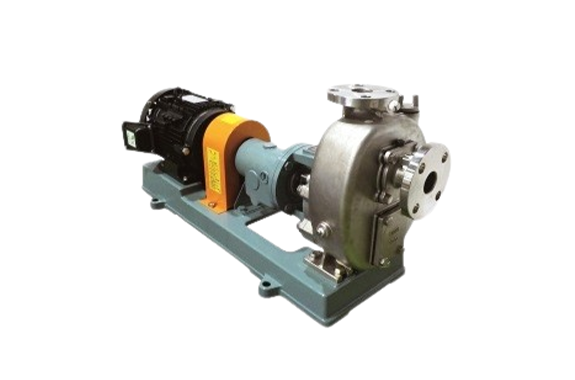

Malhaty Pump MAPS, 2MAPS
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: MAPS, 2MAPS
Features
- low NPSH-Re. (compared to our other models)
- By adopting a full open impeller, these models can be applied to the transfer of solid mixed fluids.
- The back pull-out structure enables easy assembly/disassembly without disconnecting piping.
- Various customizing are available, such as selecting shaft seal type and attaching sleeves, etc.
- The demonstration unit is available. Please feel free to contact us.
Materials
| MAPS-27 2MAPS-27 | MAPS-32 2MAPS-32 | MAPS-16 2MAPS-16 | |
|---|---|---|---|
| Casing | SCS13 | SCS14 | SCS16 |
| Impeller | SCS13 | SCS14 | SCS16 |
| Shaft | SUS304 | SUS316 | SUS316L |
| Cover Packaing | PTFE | ||
| Check Valve | NBR/FKM/PTFE | ||
Specification
| Bore | 40×40mm ～ 100×100mm |
| Discharge Volume | 25L/min 〜 2000L/min |
| Total Head | 3m 〜 105m |
| Shaft Seal | Gland packing/Mechanical seal |
| Motor pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz） |
