MALHATY PUMP MFG.CO.

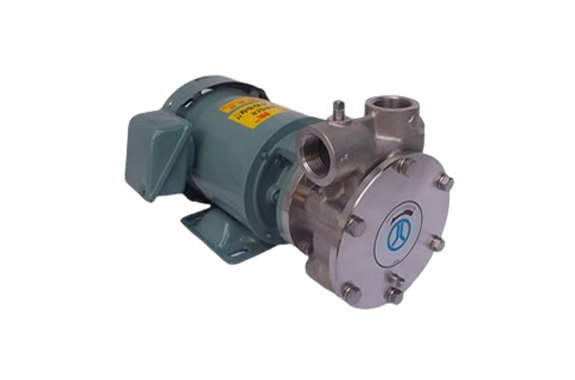

Malhaty Pump MM
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: MM
Features
- Compact and Lightweight. High head can be obtain with small power.
- Shaft Seal: Mechanical Seal.
- Standard Mechanical Seal: Carbon x SiC/PTFE.
- The demonstration unit is available. Please feel free to contact us.
Materials
| MM-154、204、254、324 | |
|---|---|
| Casing | SCS13 |
| Cover | SUS304 |
| Impeller | SUS304 |
| Shaft | SUS304 |
| Cover Packing | PTFE |
Specification
| Bore | 15×15mm ～ 32×32mm |
| DischargeVolume | 5L/min 〜 100L/min |
| Total Head | 10m 〜 45m |
| Shaft Seal | Mechanical Seal |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
