MALHATY PUMP MFG.CO.

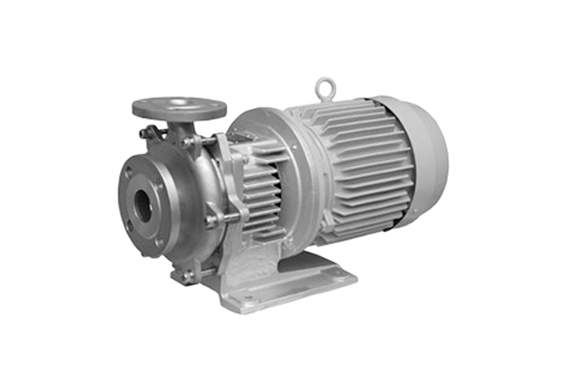

Malhaty Pump MP-M
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: MP-M
Features
- Sealless pumps have no portions where liquids may leak.
- Small circulating heat value.
- Low NPSH.
- Cooler and other utilities are not required even for high-temperature liquids transfer.
- Explosion-proof motor can be equipped.
- MP-M・MH-M.（Centrifugal Pumps）
- Liquid temperature: If your temperature requirement is -30℃ to +280℃, please contact us.
Materials
| MP-MA MP-M | ||
|---|---|---|
| Casing | SCS13/SCS14 | |
| Impeller | SCS13/SCS14 | |
| Shaft | SUS304/SUS316 | |
| Sleeve | SiC | |
| Seat Gasket | PTFE | |
Specification
| Bore | 25×25mm 〜 50×40mm |
| Discharge Volume | 10L/min 〜 600L/min |
| Total Head | 10m 〜 57m |
| Shaft Seals | Seal-less |
| Motor Pole | 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) |
