MALHATY PUMP MFG.CO.

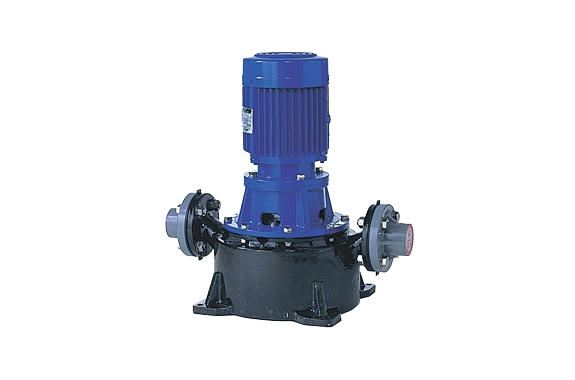

Malhaty Pump SFV Self-Priming
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: SFV
Features
- Excellent anti-corrosion and heat-resistant features.
- The seal functions as an automatic centrifugal open/close device. So no contact inside the pump happens during operation.
- As the rotation speed slows down to stop the pump, the seal surface closes and prevents liquid leakage.
- The pump needs to be filled at the first operation only. No additional filling is required after the 2nd operation because the pump has a self-priming function that automatically leaves the liquid for self-priming inside the pump.
Materials
| SFV | SFV-H | SFV-P | SFV-PH | |
|---|---|---|---|---|
| Casing | FRP | PVC | ||
| Impeller | HT-PVC | HT-PVC | ||
| Shaft | SUS304 | |||
| Shaft Sleeve | HT-PVC | |||
| Seal Packing | FKM | |||
| Max. Working Temperature | 80℃ | 55℃ | ||
※HT-PVC: Heat Resistant PVC
※SFV-H、SFV-PH: High Head Type
Specification
| Bore | 25×25mm ～ 125×125mm |
| Discharge Volume | 50L/min 〜 1000L/min |
| Total Head | 5m 〜 34m |
| Shaft Seal | HKS Seal (Special Seal) |
| Motor Pole | 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) |
