MALHATY PUMP MFG.CO.

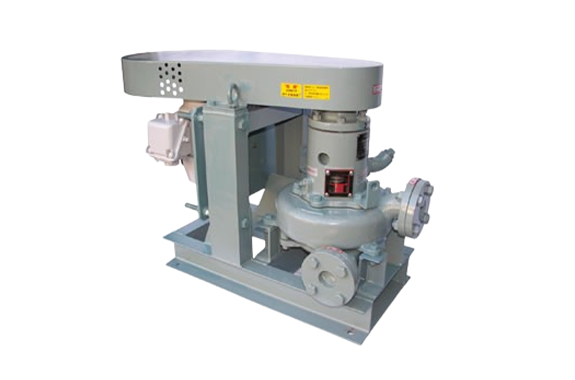

Malhaty Pump Slurry Pumps AP
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: Slurry Pumps AP
Features
- Excellent Anti-Abrasive ability.
- The mechanical seal with amazing durability.
- Easy transfer of high-concentration, high-viscosity liquids.
- High vacuuming with self-priming features.
- The demonstration unit is available. Please feel free to contact us.
Materials
| AP-□□FC | AP-□□CR | AP-□□SU | AP-□□RL | |
|---|---|---|---|---|
| Material | Cast Iron | High Chrome Cast Iron | Stainless Steel Casting | Rubber Lining |
| Casing | FC250 | 24Cr | SCS14 | Rubber+FC250 |
| Impeller | FC250 | 24Cr | SCS14 | Rubber+FC250 |
| Disc | FC250 | 24Cr | SCS14 | Rubber+FC250 |
| Shaft | S45C | S45C | S45C | S45C |
Material of rubber lining: NR, NBR, Hypalon, Buthyl
Specification
| Bore | 20×20mm ～ 150×125mm |
| Discharge | 20L/min ～ 3500L/min（Standard rotational speed） |
| Total Head | 1m ～ 100m |
| Shaft Seal | Mechanical Seal |
| Motor Poles | 600min⁻¹ ～ 3100min⁻¹ |
