MALHATY PUMP MFG.CO.

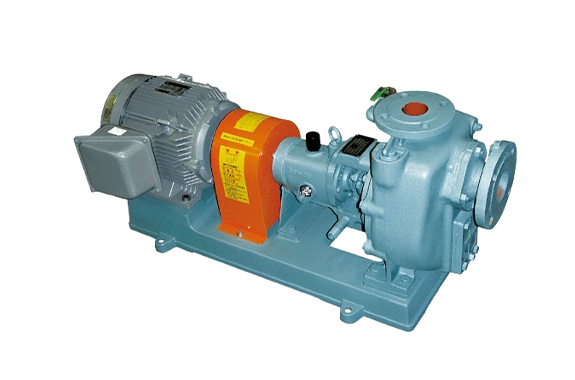

Malhaty Pump SP Type, SG Type, SF Type, SL Type
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: SP Type, SG Type, SF Type, SL Type
Features
- Because it is a casing with legs, it adopts a back pull-out system that allows easy disassembly and inspection of the main rotating parts, including the impeller, without removing the piping.
- It has a self-priming structure with an overflow air-water separation mechanism, which has excellent self-priming performance.
Materials
| SP/SG type | SF Type | SL Type | |
|---|---|---|---|
| casings | FC200 | FC200 | FC200 |
| Impeller | FC200 | FC200 | FC200 |
| shaft | S45C | SUS403 | SUS403 |
| sleeve | SUS304 | without | without |
Specification
| caliber | 25×25mm 〜 125×125mm |
| Spit out | 30L/min 〜 3400L/min |
| Full head | 10m 〜 70m |
| Shaft sealing method | Mechanical seal system/gland packing system |
| Number of motor poles | 2P(2900min⁻¹/50Hz 3500min⁻¹/60Hz) 4P(1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
