MALHATY PUMP MFG.CO.

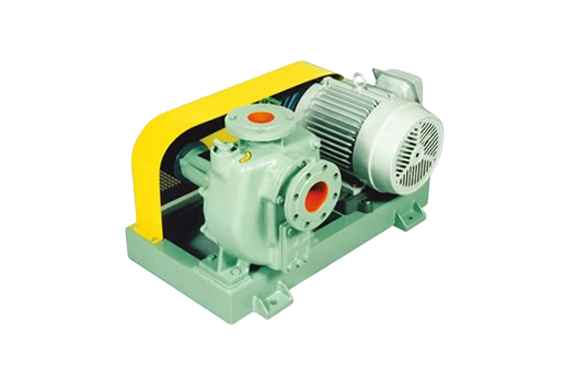

Malhaty Pump SSH
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: SSH
Features
- Strong self-priming ability.
- Easy maintenance and high cost effectiveness.
- The double mechanical seal type does not require any external sealing water.
- The discharge head can be selected freely by the rotation speed.
Materials
| for Non-corrosive slurry | for corrosive Slurry | ||
|---|---|---|---|
| SSH-Ⅰ | SSH-Ⅲ | SSH-Ⅳ | |
| Casing | FC200 | SCS13 or 14 | SCS13 |
| Impeller | FC200 | SCS13 or 14 | Duplex Stainless Steel |
| Back Plate | FC200 | SCS13 or 14 | Duplex Stainless Steel |
| Inner Volute | FC200 | SCS13 or 14 | Duplex Stainless Steel |
| Shaft | SUS420J2 | SUS304 or 316 | SUS304 or 316 |
Specification
| Bore | 40×32mm ～ 100×80mm |
| Discharge Volume | 30L/min ～ 1000L/min（Standard Rotational Speed） |
| Total Head | 4.5m ～ 41m |
| Shaft Seal | Double Mechanical Seal |
| Motor Poles | 4P（1450min⁻¹ ～ 2900min⁻¹ 50/60Hz) |
