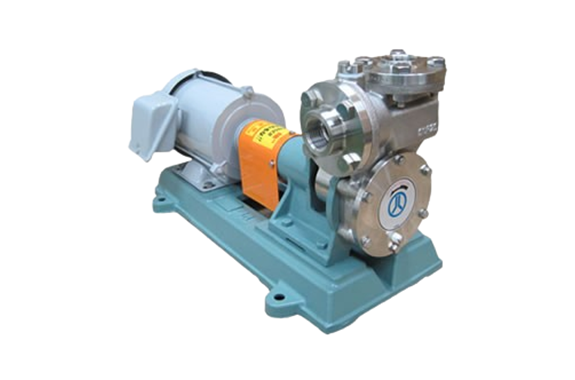

Malhaty Pump SUP Type
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: SUP Type
Features
- The maximum suction height is 6 m in fresh water (room temperature).
- The shaft seal uses a mechanical seal.
Standard material: Ceramic×carbon/PTFE
*SUP-154 type is a gland packing system. - Since it is a direct coupling connection method, various motors can be installed.
- Small size and light weight.
- Small power and high head.
Materials
| SUP-154, 204, 254, 324, 404, 504 | |
|---|---|
| casings | SCS13 |
| cover | SUS304 |
| Impeller | SUS304 |
| shaft | SUS304 |
| Cover Packing | PTFE |
| Self-priming valve | NBR/FKM/PTFE |
Specification
| caliber | 15×15mm ～ 50×50mm |
| Spit out | 4L/min 〜 150L/min |
| Full head | 8m ～ 40m |
| Shaft sealing method | Mechanical seal system *SUP-154 type is a gland packing system |
| Number of motor poles | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
