MALHATY PUMP MFG.CO.

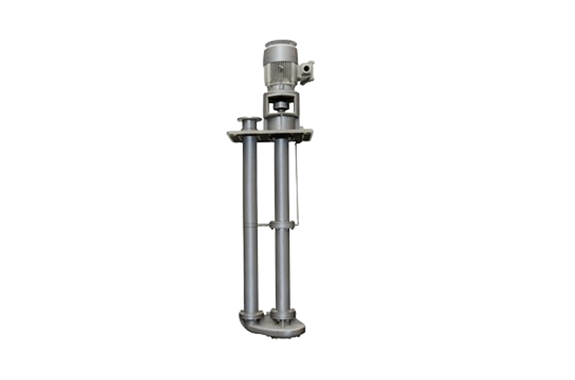

Malhaty Pump SVC
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: MAPS, 2MAPS
Features
- This pump is installed on a liquid bath or tank so that it does not cause any leakage and can be used for a long time.
- The vertical design enables installation in a small space.
- The externally tank-installation type is also available.
Materials
| SVC-27 | SVC-32 | |
|---|---|---|
| Casing | SCS13 | SCS14 |
| Impeller | SCS13 | SCS14 |
| Shaft | SUS304 | SUS316 |
| Protection pipe | SUS304 | SUS316 |
| Discharging pipe | SUS304 | SUS316 |
※Cast iron material is also available.
The “L” Length can be customized at your request. Please feel free to contact us.
Specification
| Bore | 40mm ～ 150mm |
| Discharging Volume | 50L/min 〜 3400L/min |
| Total Head | 5m 〜 40m |
| Bearing | Metal |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz) |
