Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: T
Features
- Equipped with complete one-point continuous contact gear.
- The unique gear design solves the Containment phenomenon and cavitation at the same time.

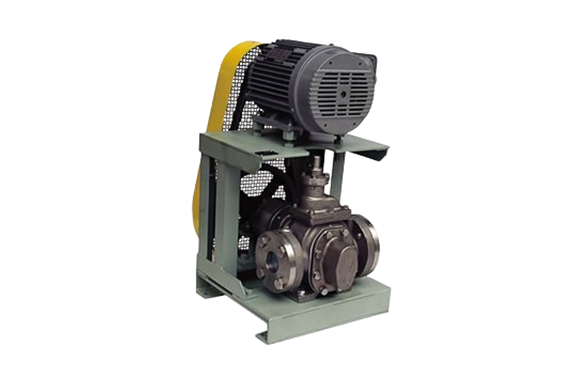

- The vertically-designed two-stage base plate can save space with a small installation area.
Materials
| 27 | 32 | F |
|---|
| Casing | SCS13 | SCS14 | FC200 |
| Gear | SCS13 | SCS14 | S45C |
| Shaft | SUS304 | SUS316 | S45C |
| Metal | CAC406、High Carbon |
Specification
| Bore | 20×20mm ～ 200×200mm |
| Discharging volume | 6L/min ～ 2400L/min（50mPa・s～500mPa・s） |
| Total Head | 0.3MPa ～ 1.0MPa（Varying by the viscosity conditon） |
| Shaft Seal | Mechanical seal/Gland Packing |
| Motor pole | 4P・6P |
| Rotational Speed | 300min⁻¹ ～ 1500min⁻¹ |
| Driving system | V-belt driven(two-stage vertical base, flat base), Direct-coupled |
| Safety valves and jackets can be fitted at your request. |
