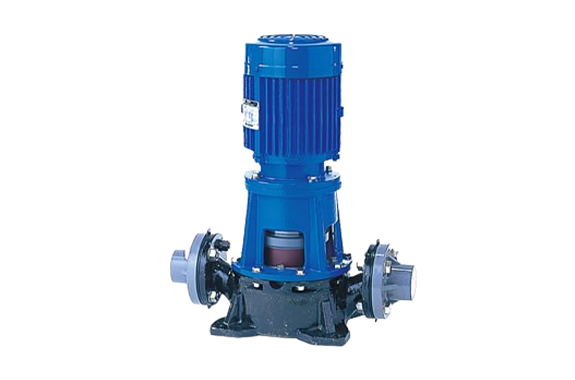

Malhaty Pump TFV Non-Self-Priming
Manufacturer: MALHATY PUMP MFG.CO., LTD.
Model: TFV
Features
- Excellent anti-corrosion and heat-resistant features.
- The seal functions as an automatic centrifugal open/close device. So no contact inside the pump happens during operation.
- As the rotation speed slows down to stop the pump, the seal surface closes and prevents liquid leakage.
Materials
| TFV | TFV-H | TFV-P | TFV-PH | |
|---|---|---|---|---|
| Casing | FRP | PVC | ||
| Impeller | HT-PVC | |||
| Shaft | SUS304 | |||
| Shaft Sleeve | HT-PVC | |||
| Seal Packing | FKM | |||
| Max. Working Temperature | 80℃ | 55℃ | ||
※HT-PVC: Heat Resistent PVC
※TFV-H、TFV-PH: High Head Type
Specification
| Bore | 40×40mm ～ 125×125mm |
| Discharge Volume | 50L/min 〜 1100L/min |
| Total Head | 6m 〜 37m |
| Shaft Seal | HKS Seal(Special Seal) |
| Motor Pole | 2P（2900min⁻¹/50Hz 3500min⁻¹/60Hz) |
