Manufacturer: MALHATY PUMP MFG.CO., LTD.

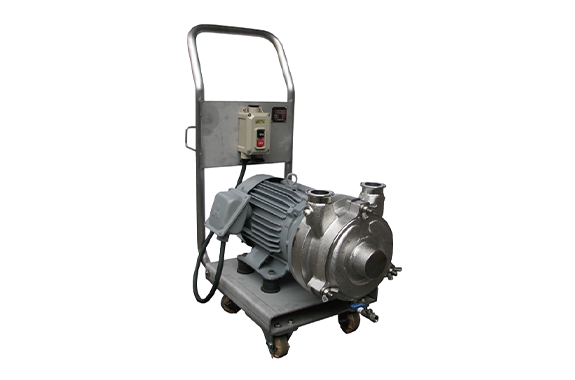

Model: THV
Features
- Most suitable for transferring gas-mixed liquids.
- Capable of self-priming 6 meters high within one minute.
- You can continuously bring the suction hose from one tank to another without stopping the pump. The pump allows for sucking up liquids completely and empty pushing.
- The demonstration unit is available. Please feel free to contact us.
Materials
| THV-27M | THV-32M |
|---|
| Casing | SCS13 | SCS14 |
| Impeller | SCS13 | SCS14 |
| Shaft | SUS316 | SUS316 |
| Cover Packing | FKM | FKM |
Specification
| THV |
|---|
| Bore | Ferrule 2.0s × Ferrule 2.0s |
| Discharge Volume | 50L/min / 100L/min （50Hz/60Hz） |
| Total Head | 15m |
| Shaft Seal | Mechanical Seal |
| Motor Pole | 4P（1450min⁻¹/50Hz 1750min⁻¹/60Hz） |
