Marushichi Co.

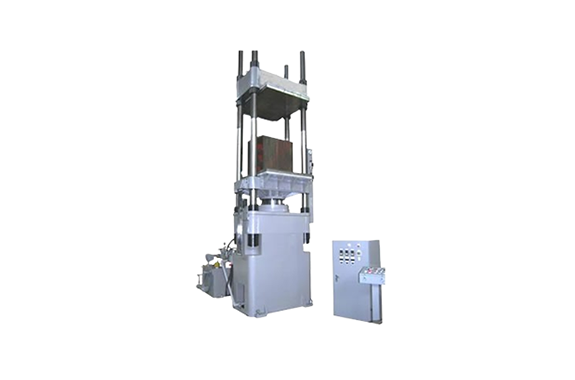

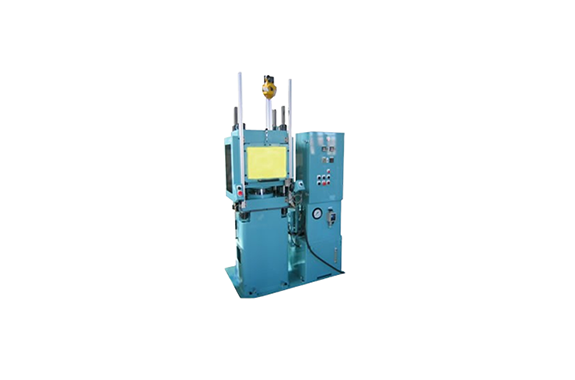

Marushichi Compression Molding Machine
Manufacturer: Marushichi Co., Ltd.
Features
- 1) Hot plate specifications
- ①High temperature specifications: Proven performance up to 350℃
- ②Heating and cooling plate method
- 3) Heating with heat transfer oil or steam
- ④ Temperature control by process controller
- 2) Ejector method
- ① Adoption of hydraulic and air systems that are compatible with other mechanical molds
- 3) Vacuum specifications You can select the vacuum method that is suitable for your work, such as the chamber method.
- 4) Touch panel method
- ①Precise setting of pressure and stability through feedback control
- ②Digital setting of speed control
- 3) Multi-stage pressure setting, pressure rise and drop time setting
- 4) Easy reproducibility by memorizing setting conditions
Specifications
| Model | Output (kN) | Ram Ø (mm) | Daylight (mm) | Stroke (mm) | Heated platen size (mm) | Heater capacity (kW) | Hydraulic pump motor (kW) |
|---|---|---|---|---|---|---|---|
| MB-015 | 150 | 100 | 300 | 200 | 250 × 250 | 4 | 1.5 |
| MB-037 | 370 | 152 | 410 | 250 | 305 × 305 | 5 | 2.2 |
| MB-050 | 500 | 180 | 560 | 300 | 405 × 355 | 7 | 2.2 |
| MB-070 | 700 | 205 | 620 | 350 | 465 × 370 | 8 | 3.7 |
| MB-0100 | 1000 | 250 | 720 | 410 | 610 × 470 | 12 | 5.5 |
| Model | Output (kN) | Ram Ø (mm) | Daylight (mm) | Stroke (mm) | Heated platen size (mm) | Heater capacity (kW) | Hydraulic pump motor (kW) |
|---|---|---|---|---|---|---|---|
| MB-0150 | 1500 | 305 | 770 | 425 | 610 × 580 | 16 | 7.5 |
| MB-0200 | 2000 | 355 | 900 | 500 | 740 × 660 | 20 | 11 |
| MB-0300 | 3000 | 430 | 1100 | 600 | 890 × 760 | 25 | 15 |
| MB-0500 | 5000 | 500 | 1300 | 700 | 980 × 900 | 32 | 22 |
