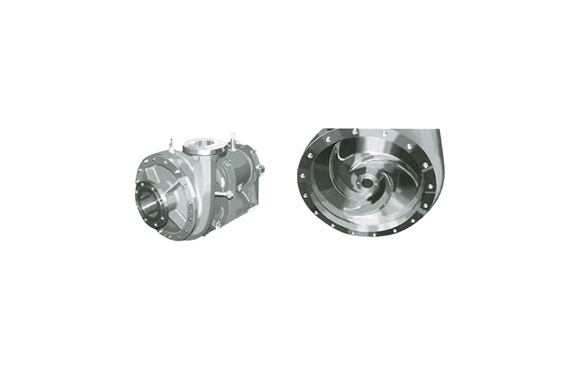

Marushichi SC-PS Buffing & Electrolytic Polishing Pump
Manufacturer: Marushichi Co., Ltd.
Features
The SC-PS is a pump engineered specifically for high-chemical slurries and latex.
Featuring a special three-blade impeller, it delivers excellent performance with high-slurry and high-viscosity liquids.
Its shaft seal is a unique design optimized for latex, and other seal types can be selected to meet different specifications.
Because the internal structure supports buffing and electrolytic polishing, the pump is well-suited for handling viscous fluids.
A low-NPSH configuration is achieved through a custom impeller, an extended suction passage, and a streamlined impeller nut.
Specifications
| Name | Casing | Impeller | Shaft | Seal |
|---|---|---|---|---|
| SCS 13, 304 S·S | SCS 13, 304 S·S | SUS 304, 304 S·S | Mechanical seal & Gland packing | |
| SCS 14, 316 S·S | SCS 14, 316 S·S | SUS 316, 316 S·S | ||
| SCS 10, Duplex S·S | SCS 10, Duplex S·S | SUS 316, 316 S·S |
