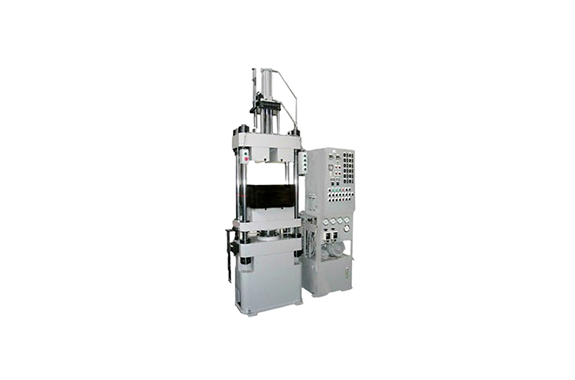

Marushichi Transfer Molding Machine
Manufacturer: Marushichi Co., Ltd.
Features
It offers mold clamping forces from 150KN to 2000KN.
Ejector device:
You can choose a mechanical type or a hydraulic type.Hydraulic power source:
You can add a power unit for the mold core.Vacuum device:
You can install a vacuum system when needed.Digital settings:
A touch panel lets you set and adjust all functions easily.
Specifications
| Item | MF-015 | MF-037 | MF-050 | MF-0100 | MF-0150 | MF-0200 |
|---|---|---|---|---|---|---|
| Clamping force (kN) | 150 | 370 | 500 | 1000 | 1500 | 2000 |
| Daylight (mm) | 300 | 410 | 560 | 720 | 770 | 900 |
| Stroke (mm) | 250 | 250 | 270 | 410 | 425 | 460 |
| Mold mounting size (mm) | 260 × 260 | 305 × 305 | 405 × 355 | 510 × 470 | 610 × 580 | 740 × 660 |
| Injection force (kN) | 30 | 90 | 130 | 250 | 380 | 420 |
| Injection stroke (mm) | 200 | 255 | 325 | 350 | 360 | 375 |
| Heater capacity (kW) | 3 | 3 | 4 | 8 | 12 | 16 |
| Hydraulic pump motor (kW) | 1.5 | 2.2 | 2.2 | 5.5 | 7.5 | 11 |
| Item | MF-L30 | MF-L50 | MF-L100 | MF-L150 | MF-L200 |
|---|---|---|---|---|---|
| Clamping force (kN) | 300 | 500 | 1000 | 1500 | 2000 |
| Daylight (mm) | 650 | 650 | 650 | 750 | 750 |
| Stroke (mm) | 250 | 250 | 280 | 300 | 300 |
| Mold mounting size (mm) | 600 × 580 | 600 × 580 | 650 × 600 | 800 × 700 | 800 × 750 |
| Injection force (kN) | 30 | 90 | 130 | 250 | 300 |
| Injection stroke (mm) | 250 | 250 | 250 | 250 | 250 |
| Ejector stroke (mm) | 70 | 70 | 100 | 150 | 150 |
| Heater capacity (kW) | 5 | 7 | 10 | 16 | 20 |
| Hydraulic pump motor (kW) | 2.2 | 2.2 | 5.5 | 7.5 | 7.5 |
