Manufacturer: Masuda Manufacturing Co., Ltd.

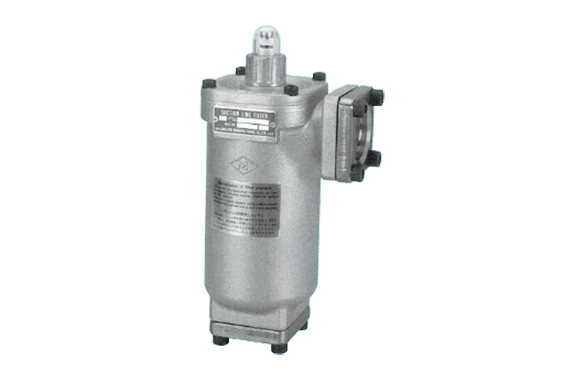

Model: FSA Type

Features

• This is a lightweight, compact, and high-performance suction filter.
• It completely eliminates air pockets within the filter (there is no concern about air pockets from very low to rated flow rates).
• It is ideal as a suction filter for variable displacement pumps.
• We have improved it to ensure that the built-in safety valve does not release debris collected by the element (even when removing the element, debris once captured does not escape back into the tank).
• We offer an optional differential pressure detector (visual type and with electric contacts) to monitor the clogging state of the element.
• When using hydraulic fluids other than mineral oil, please specify as the material and packing will change.
  • Phosphate ester-based: We use Viton for O-rings and packing.
  • Water-glycol based: We modify some materials.
  • Fatty acid ester-based: We modify some materials.
