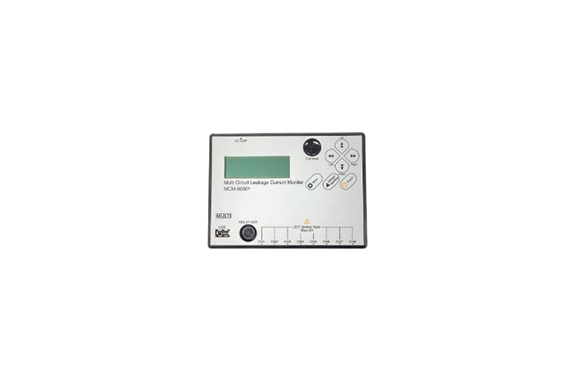

Multi MCM-8000+ Multi-Circuit RCD Monitor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCM-8000+
Features
・Measure and record leakage current of up to 8 circuits at the same time
・Trigger recording to record the date and time of leakage occurrence/end of leakage/maximum leakage value when the setting current value is exceeded
・Logging recording to record the average, maximum, and minimum leakage values between set intervals
・A wide lineup of current sensors (optional)
・High-speed sampling of about 20ms
・Alarm output function that outputs a voltage-free contact when the setting current value is exceeded
・Recorded data is stored inside the main unit and can be displayed on a PC with dedicated software, and trigger recording data can also be checked on the main unit display
Specifications
| Number of Measurement Circuits | 8 circuits |
|---|---|
| Measuring range | AC 0～2000mA |
| Minimum resolution | 1mA |
| AC current accuracy | ±3％rdg±2dgt |
| Sampling Speed | Approx. 20ms |
| Filter characteristics | Built-in high-frequency cut-off filter (secondary LPF cut-off frequency 500Hz) |
| Set current value | 1mA intercalation in 10~1000mA |
| Measurement Interval | Choose from 1/5/10/15/30/60 minutes |
| Communication Settings | USB: Type A Bluetooth: Class 2 Choose from above |
| memory capacity | Trigger Records: Up to 2040 times per channel (1 time when the setting current value is exceeded and the leakage return value is lower) Logging Records: Up to approximately 113 days at 5-minute intervals (average, maximum, and minimum leakage current values) |
| power | AC adapter AA alkaline batteries ×4 (for backup in case of power outage) |
| Dimensions and Weight | W190×H140×D42mm Approx. 400g (main unit only) |
| accessory | Carrying case, 4 AA alkaline batteries× AC adapter, USB A to USB A communication cable |
| option | ZCT-18SCM CT Inner Diameter φ18mm ¥14,000 (excluding tax) ZCT-30SCM CT Inner Diameter φ30mm ¥17,500 (excluding tax) ZCT-40SCM CT Inner Diameter φ40mm ¥21,500 (excluding tax) ZCT-80SCM CT Inner Diameter 74×80mm ¥32,500 (excluding tax) ZCT-1100SCM CT Inner Diameter 108×128mm ¥73,000 (excluding tax) All CT Leads: 5m CT Storage Case (MK-001) ¥ 10,500 (excluding tax) Relay Output Cable 2m (MC-004) ¥ 8,600 (excluding tax) |
