Manufacturer: Midori Precisions Co., Ltd.
Model : CE36M / CE58M

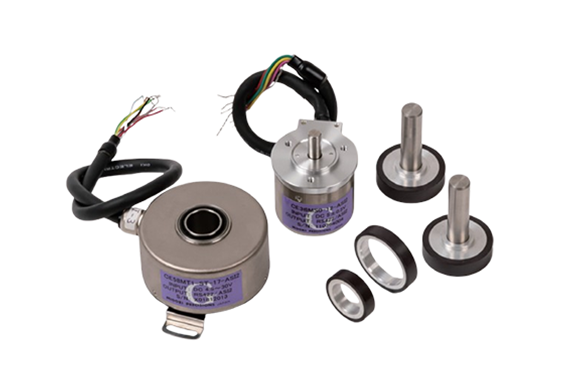

Features

• Rotary encoders with both high resolution and environmental resistance
• Hollow type and multi revolution type are available.
• These encoders are used mainly in the construction machinery and civil engineering measurement industries.

CE36M (High Accuracy / Drip – proof)

• [Application] – Aerial work platform: boom angle detection

CE58M (High Accuracy / Long life/ Drip – proof / Multiturn)

• [Application] – Landslide measuring device: wire extension length detection

High Precision Multipole Magnet Scale

[Application examples] – Application to magnetic rotary encoders

• Multi-pole magnetization (standard) 512 poles, 256 poles
• High accuracy – Single pitch accuracy: 0.1%, Cumulative pitch accuracy: 0.4
• Fine pitch support – Magnetizing pitch: 100 μm minimum
• Multiple tracks can be magnetized in a single drum.
• Mixed pitches can be mixed in a single track
• Maximum workpiece size: 200 mm x 20 mm
• Harmonic distortion rate 2% (2nd to 7th order)
