Midori Precisions Hall Effect IC Rotary Potentiometer
Manufacturer: Midori Precisions Co., Ltd.
Model : Hall Effect IC (CP-1HX / CP-2HB / QP-2H / QP-2HC / CP-20H / CP-22H / CP2HX / QP-3HB-111-02 / CP-3HABS / CP-2HA / CP-30H / CP-2HK / -8R / -10R / CP-45H )
Features
- Extensive lineup of products with outer diameters ranging from Φ15 to Φ87
- Many types from low price to high precision
- Our products are used in various industries and applications
CP-1HX (Compact / Long life / Drip-proof)
- [Application] – Flowmeter: valve openness detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±180° |
| Dimensions(mm) | 14×18×4.4 |
| Accuracy (Linearity) | ±2%FS |
| Input voltage | DC5±0.5V |
| Output type | Ratio/PWMx1/x2 |
CP-2HB (Compact / Long life)
- [Application] – Industrial sewing machine: pedal angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±45° |
| Dimensions(mm) | 19.5×16 |
| Accuracy (Linearity) | ±3％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
QP-2H / QP-2HC (High Accuracy / Long life)
- [Application] – Packaging machine: dancer roll angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±45° |
| Dimensions(mm) | Φ15 |
| Accuracy (Linearity) | ±1.5％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
CP-20H (High Accuracy / Long life)
- [Application] – Specialty vehicle: lever angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±170°(340°）,±180°(360°） |
| Dimensions(mm) | Φ22 |
| Accuracy (Linearity) | ±1%FS |
| Input voltage | DC5V±0.5V |
| Output type | Ratio |
CP-22H (Long life / Drip-proof / Multiturn )
- [Application] – Forklift: Steering angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±2, 160(standard)/±9000° |
| Dimensions(mm) | 44×22×30 |
| Accuracy (Linearity) | ±1%FS |
| Input voltage | DC5±0.5V |
| Output type | Ratio |
CP2HX (Compact / Long life / Drip-proof)
- [Application] – Industrial vehicle: control lever angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±180° |
| Dimensions(mm) | 30×33.5×7 |
| Accuracy (Linearity) | ±2%FS(When misalignment is within regulatory limits) |
| Input voltage | DC5±0.5V |
| Output type | Ratio/PWM |

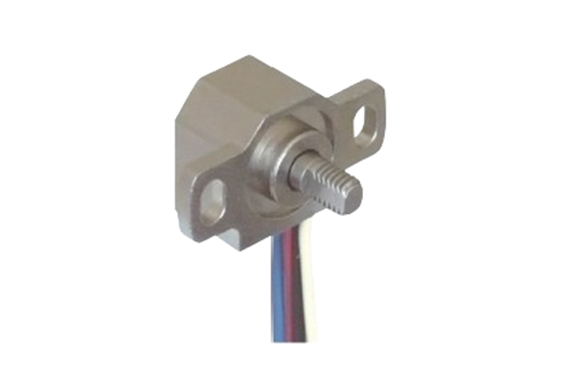

QP-3HB-111-02 (Long life / Drip – proof)
- [Application] – Industrial vehicle: lever position/pedal angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±45° |
| Dimensions(mm) | 20×21 |
| Accuracy (Linearity) | ±2％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
CP-3HABS (Long life / Drip – proof)
- [Application] – Industrial vehicle: pedal angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±45° |
| Dimensions(mm) | 26.5×20 |
| Accuracy (Linearity) | ±4％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
CP-2HA (Long life / Drip – proof)
- [Application] – Industrial vehicle: steering angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±175° |
| Dimensions(mm) | Φ28 |
| Accuracy (Linearity) | ±1％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
CP-30H (Long life)
[Application] – Winding machine: tension detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±50° |
| Dimensions(mm) | Φ28 |
| Accuracy (Linearity) | ±6％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
CP-2HK / -8R / -10R (Long life)
- [Application] – Food packaging machine: film tension detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±40° |
| Dimensions(mm) | Φ36 |
| Accuracy (Linearity) | ±1％ |
| Input voltage | DC5V±0.5/8V±0.5/10V±0.5 |
| Output type | Ratio |
CP-45H (Long life)
- [Application] – Measuring instrument: stage rotary angle detection
| Hall Effect IC | |
|---|---|
| Effective electrical travel | ±180° |
| Dimensions(mm) | Φ45 |
| Accuracy (Linearity) | ±0.4％ |
| Input voltage | DC5V±0.5 |
| Output type | Ratio |
