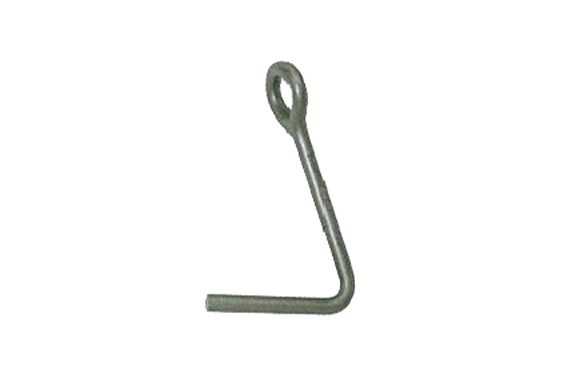

MIKI NETSUREN PF Pipe Hanging Hook
Product Made in Japan
Manufacturer: Miki Netsuren
Model: PF Type
Features
- It hooks both ends of a pipe and lifts it up.
- By hook combination, two pipes can be moved at a time.
| Basic usage load | ℓ1 | ℓ 2 | ℓ 3 | d | L | t | Self weight (kg) |
|---|---|---|---|---|---|---|---|
| 250 KG | 90 | 130 | 103 | 22 | 165 | 13 | 0.55 |
| 500 KG | 120 | 180 | 136 | 30 | 227 | 16 | 1.35 |
| 750 KG | 140 | 220 | 159 | 36 | 276 | 19 | 2.35 |
| 1 TON | 160 | 250 | 182 | 42 | 315 | 22 | 3.35 |
