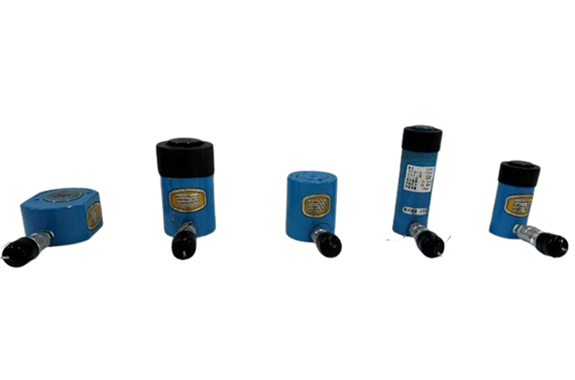

Mini Hydraulic Jack
Model: Mini Hydraulic Jack
Features
“We also offer mini jacks that can be used like hand tools.
Please contact us for inquiries.
Specification
| Capacity | 300 kN | 230 kN | 200 kN | 100 kN | 100 kN |
|---|---|---|---|---|---|
| Stroke | 15 mm | 50 mm | 45 mm | 100 mm | 50 mm |
| Min. Mechanical Height | 60 mm | 150 mm | 100 mm | 178 mm | 125 mm |
| Cylinder Outer Diameter | 115 mm | 85 mm | 85 mm | 57 mm | 57 mm |
| Cylinder Inner Diameter | 75 mm | 65 mm | 60 mm | 43 mm | 43 mm |
| Rod Diameter | 45 mm | 57 mm | 38 mm | 38 mm | 38 mm |
| Pressure Receiving Area | 44.18 cm² | 33.18 cm² | 28.87 cm² | 14.52 cm² | 14.52 cm² |
| Operating Pressure | 67.9 MPa | 69.3 MPa | 69.3 MPa | 68.9 MPa | 68.9 MPa |
| Oil Requirement | 16 cm³ | 166 cm³ | 127 cm³ | 146 cm³ | 73 cm³ |
| Weight | 1.4 kg | 6.5 kg | 3.8 kg | 2.9 kg | 2.2 kg |
