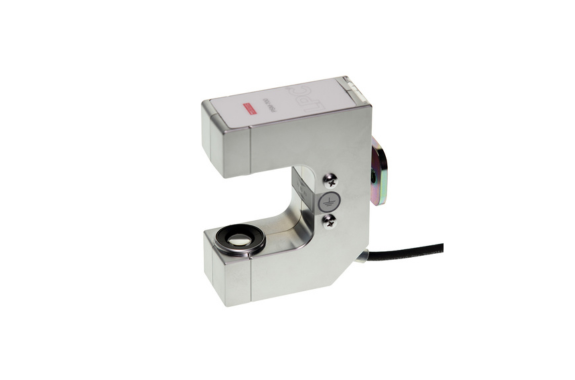

MITSUHASHI PSM-700 Infrared Edge Sensor
Manufacturer: MITSUHASHI CORPORATION
Model: PSM-700
This is an infrared-transmissive web edge sensor. It is used in combination with G-series controllers and drive units for web meandering control. It is suitable for edge detection of opaque webs and nonwoven fabrics.

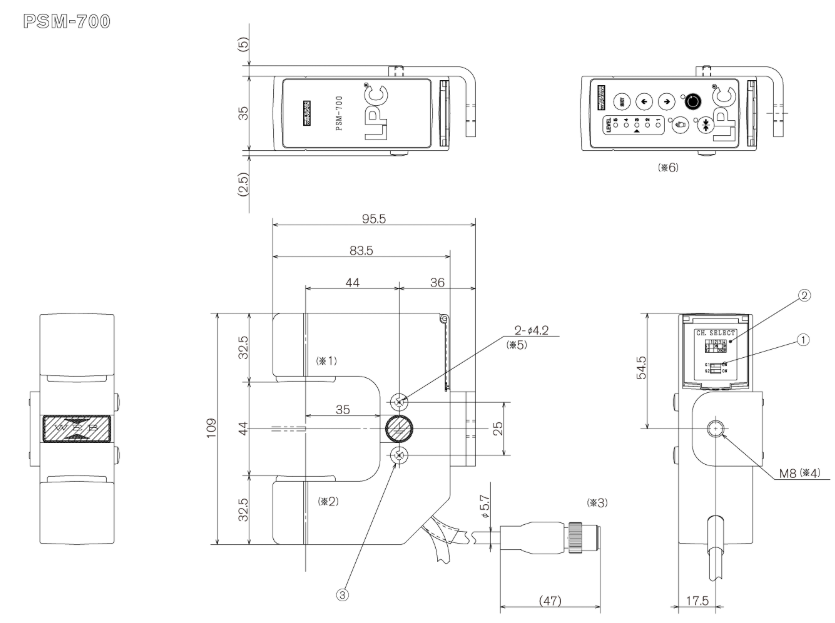

Drawing
① Channel selection switch
② Transparent cover
③ Grounding terminal (M4) *1: Receiving side *2: Transmitting side *3: Cable length 300mm *4: Mounting depth 10mm *5: Mounting hole when not using the included bracket *6: Diagram with switch panel
Features
- The device uses infrared light as its light source and is suitable for detecting meandering in transparent and opaque films, as well as nonwoven fabrics.
- In dusty environments, the “DB” type with a dust blowing unit is effective.
- The “700S” with a switch panel is convenient because mode switching and teaching operations can be performed directly on the sensor unit. Furthermore, the switch panel version allows for a simpler system (driver and sensor only) without the need for a PEM-type controller.
Specification
| power supply | DC24V±10% (supplied via CAN bus) |
|---|---|
| Current consumption | 40mA (at DC24V power supply) |
| Usage environment | Temperature: 0–40°C; Humidity: 80% Rh or less (non-condensing) |
| mass | Approximately 220g |
| Detection target | Web edges, borders (such as print edges) |
| Detection range | 15mm |
| light source | Infrared light-emitting diode |
| light-receiving element | photodiode |
Lineup
| Model | Purpose |
|---|---|
| PSM-700 | standard |
| PSM-700S | With switch panel |
| PSM-700-DB | With dust blower |
| PSM-700S-DB | Includes switch panel and dust blower. |
DB Air Specification
| air source | 0.2～0.5MPa 20Nℓ/min |
|---|---|
| Connection port diameter | φ2.1 (for φ3 tubes) |
*Please use a speed controller to adjust the flow rate to approximately the above values.
