Manufacturer: MITSUHASHI CORPORATION

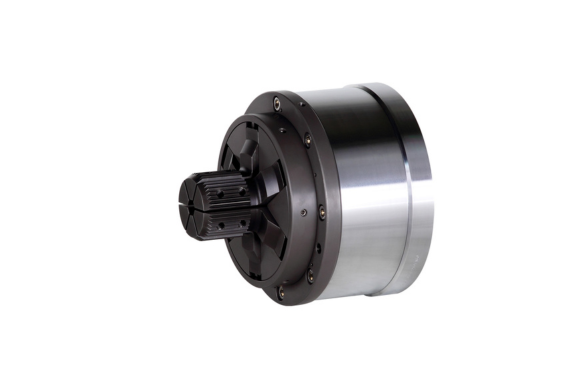

The air chuck’s body is a large-diameter air cylinder, and the jaws extend by pushing out the tapered tip with high thrust. This allows for a powerful and secure grip on the core.

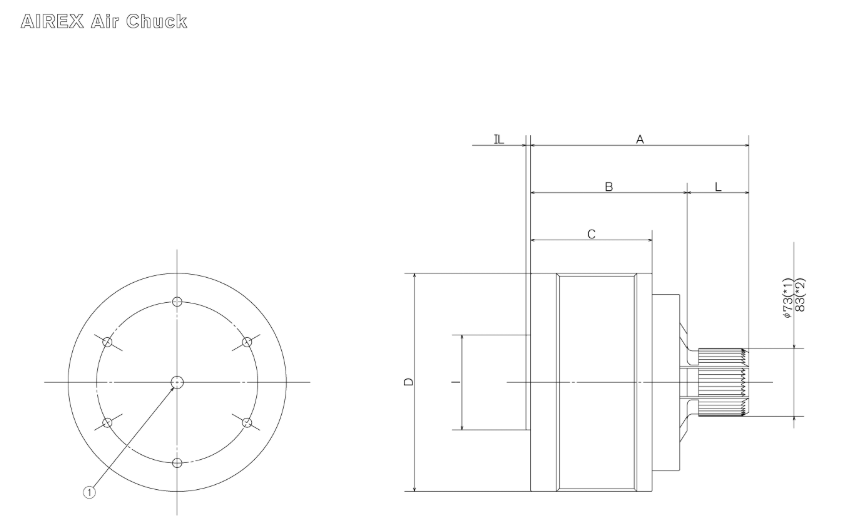

Drawing

① Air inlet
A: Overall length B: Distance from mounting surface to claw contact C: Main body length D: Main body outer diameter
I: Outer diameter of protrusion (spigot) IL: Length of protrusion (spigot) L: Claw length　
(*1) Contracted diameter (*2) Tensioned diameter

Features

• The standard jaws are for 3-inch cores, but by adding an adapter, you can chuck larger cores as well.
• Air chucks use an air cylinder to expand and contract the chuck jaws, eliminating the need for pressing force from both sides.
