Miura
Miura Cyclosep Separator
Manufacturer: Miura Chemical Equipment Co., Ltd.
It has excellent separation efficiency for economically removing large amounts of liquid and solid matter from gas streams and can also be used as a knockout separator.
Purpose
- Knockout Drum
- Compressor
- Steam turbine
- Decoking Drum
- Absorption tower/washing tower
- Geothermal and heat recovery
Performance
It can separate large amounts of liquid up to a 50% liquid-to-gas ratio by weight, and separates 99% of mist with particle diameters of 10 μm or more and 99% of solids with particle diameters of 15 μm or more.
Principles and Features

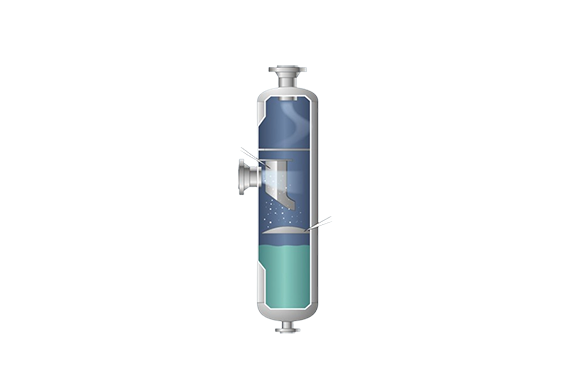

When gas containing mist enters the separator, the vortex baffle creates centrifugal force that drives the mist and solids downward toward the inner wall of the vessel, and this motion allows the system to separate them efficiently. Below the vortex baffle, the dish-shaped baffle then sustains the swirling motion and also blocks any liquid in the pool from re-entering the gas stream. After that, the purified gas turns upward and finally exits through the outlet nozzle.
