MIYAIRI VALVE MFG.CO., Ltd.

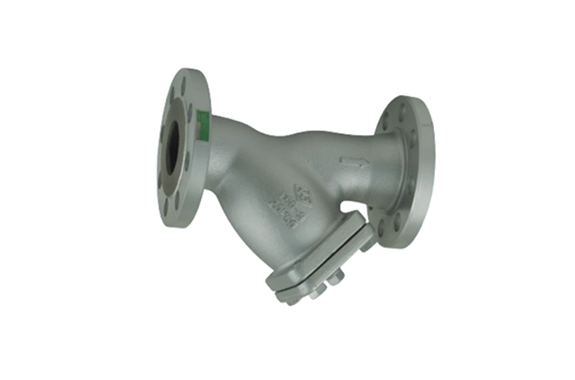

MIYAIRI DF-510 Ductile Iron Y-type Strainer
Origin: Japan
Manufacturer: MIYAIRI VALVE MFG.CO., Ltd.
Model: DF-510
Feature:
- Main Fluid: LPG
- Applicable Regulation: Certified product (認定品)
Specification Table
| Specification | Value |
|---|---|
| Design Pressure | 2.35 MPa |
| Hydrostatic Testing Pressure | 3.9 MPa |
| Design Temperature | -5°C to 120°C |
| Leakage Testing Pressure | 2.35 MPa |
Material Table
| Component | Material |
|---|---|
| Body | FCD-S |
| Bonnet | S25C |
| Screen | SUS304 (40 mesh) |

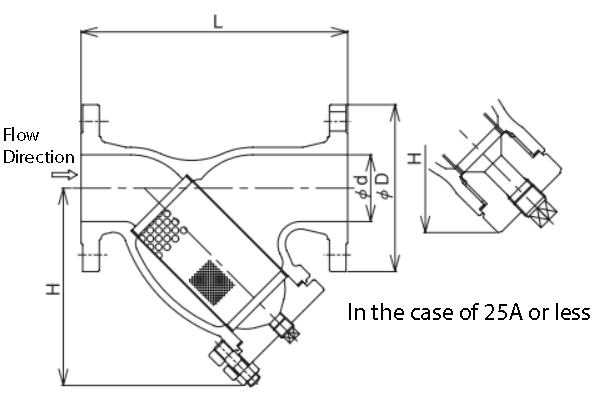

Sizes Table
| Size | d | D | L | H | Weight | Product Code |
|---|---|---|---|---|---|---|
| 15A | 15 | 95 | 130 | 80 | 2.5 kg | DF-510-25-015 |
| 20A | 20 | 100 | 140 | 80 | 2.9 kg | DF-510-25-020 |
| 25A | 25 | 125 | 160 | 90 | 4.8 kg | DF-510-25-025 |
| 40A | 40 | 140 | 180 | 100 | 6.5 kg | DF-510-25-040 |
| 50A | 50 | 155 | 210 | 110 | 10.5 kg | DF-510-25-050 |
| 80A | 80 | 200 | 265 | 130 | 26.5 kg | DF-510-25-080 |
| 100A | 100 | 225 | 380 | 160 | 31.5 kg | DF-510-25-100 |
