MIYAIRI VALVE MFG.CO., Ltd.

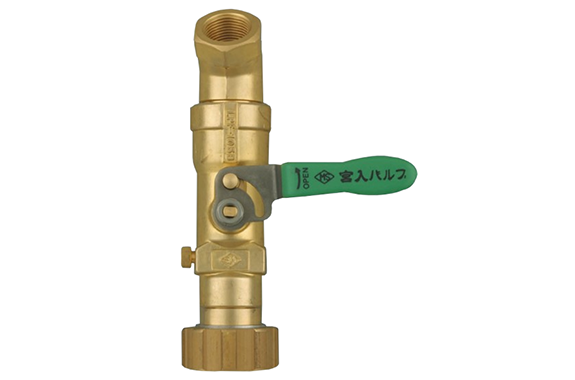

MIYAIRI LPF-105B Filling Valve
Origin: Japan
Manufacturer: MIYAIRI VALVE MFG.CO., Ltd.
Model: LPF-105B
Feature: This is a filling valve for large containers with a ball valve type.
| Specification | Details |
|---|---|
| Size | 20A |
| Main Fluid | LPG |
| Connection | Rc 3/4 × TW44 |
| Applicable Regulation | Certified Product (認定品) |
| Design Pressure | 2.35 MPa |
| Design Temp. | -10°C to 70°C |
| Hydrostatic Testing Pressure | 3.9 MPa |
| Leakage Testing Pressure | 2.35 MPa |
| Weight | 1.7 kg |
| Material | Details |
|---|---|
| Body | C3771B |
| Seat | PTFE |
| Ball | C3604B |
| Connector | C3771B |
| Handle | SUS304 |
