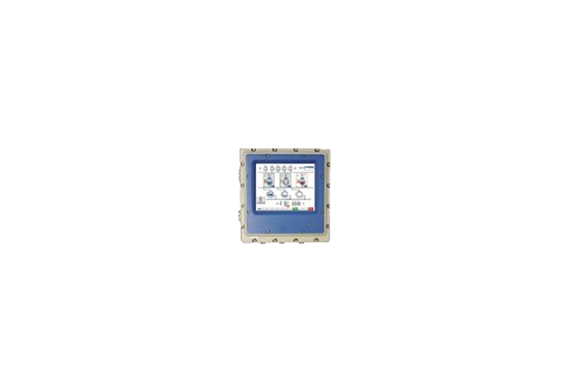

The EXPC-5170 explosion-proof synchronizer is engineered to support Zone 1 and Zone 2 explosion areas, offering optimal safety in environments with high explosive risks. This advanced synchronizer ensures seamless integration in hazardous zones, providing reliable performance while maintaining robust safety standards. With its explosion-proof design, it is the ideal solution for applications where both precision and safety are paramount.
Specifications
| General Specifications | |
| Display Type | TFT Active Matrix Color LCD |
| Display Area | 337.9mm (H) × 270.3mm (V) |
| Resolution | 1,280 (H) × 1,024 (V) pixels |
| Brightness | 350cd/m² |
| Maximum Display Color | Approx. 16.7 million colors |
| Input Voltage | AC100V ±10% 50/60Hz |
| Power Consumption | 72VA or less |
| Input Current | AC1,500V 1 minute (with power supply terminal and FC terminal) |
| Operating Temperature | 0°C to +40°C |
| Ambient Temperature | 30~80% RH (Non-condensing) |
| External Dimensions | W520 × H550 × D183 (including mounting) |
| Weight | 60kg or less (with options) |
| Material | Aluminum Alloy |
| Explosion Protection | |
| Explosion Protection | Exd (b) II BT4 |
| Communication Method | Zone 1, Zone 2 |
| Certification Number | TC12183 |
| Touch Panel Specifications | |
| Resolution | 1024 x 1024 (15 x 12 zones) |
| Lifespan | 10 million touches |
| PC Specifications | |
| OS | Windows 10 IoT Enterprise LTSB 2016 |
| CPU | Intel Celeron N3160 2.24GHz |
| Memory | DDR3L 4GB |
| Disk Drive | SSD 60GB |
