MIYAKI ELECTRIC MFG.CO.
Miyaki CM3Ha NWEX Series
Manufacturer: MIYAKI ELECTRIC MFG.CO.,LTD.
Features

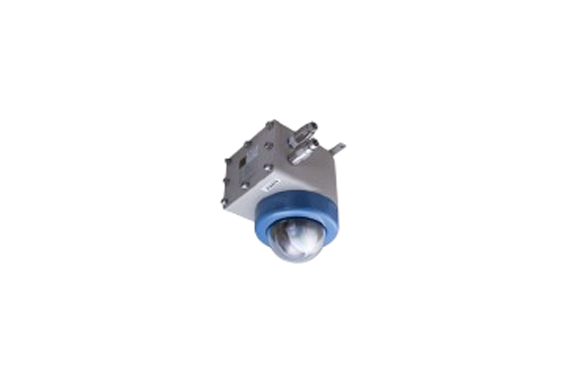

This 2-megapixel laser zoom lens PTZ model offers a real zoom ratio of approximately 10x, ensuring high-quality, detailed imaging. Moreover, it is designed for practical use in environments containing gases with water vapor, making it suitable for Zone 1 and 2 applications. In addition, the PoE power supply implementation enhances energy efficiency by simplifying wiring, while network integration is made easy with the use of the same cable.
Furthermore, the system prioritizes security and safety, featuring robust explosion-proof construction (Exd II B + H2 T4) to meet strict industry standards. As a result, it offers reliable, safe, and efficient operation in demanding environments.
Specifications
| Model | NWEX-CM3Ha |
| External Dimensions | 270mm (W) × 313mm (H) × 270mm (D) |
| Weight | Approx. 16kg |
| Power Supply | AC100V and PoE (IEEE802.3af) Approx. 12.95W |
| Material | Aluminum Alloy (Aluminum Die-cast) |
| Paint color | Case part: Munsell 5Y7/1, Ring: Munsell 5PB4/6.5 |
| Operating temperature | -10°C to +40°C (with heater: -20°C to +40°C) |
| Ambient temperature | 20~85% RH |
| Protection | IP66 |
| Installation method | Table mounting / Ceiling mounting |
| Maximum continuous operation | 14A (conditions apply) |
| Cable connection method | 14/3 conductor (conditions apply) |
| Note | Cable brand and plug are not included |
