This compact model for PoE power supply features a wide-angle lens and position adjustment function, providing enhanced versatility and performance. Moreover, it ensures power line efficiency with PoE, optimizing energy usage across systems. In addition, the design prioritizes security and safety, meeting rigorous standards for reliable operation. Furthermore, the explosion-proof structure (Exd II B + H2 T5) guarantees safe use in hazardous environments, making it ideal for a wide range of industrial applications.
MIYAKI ELECTRIC MFG.CO.

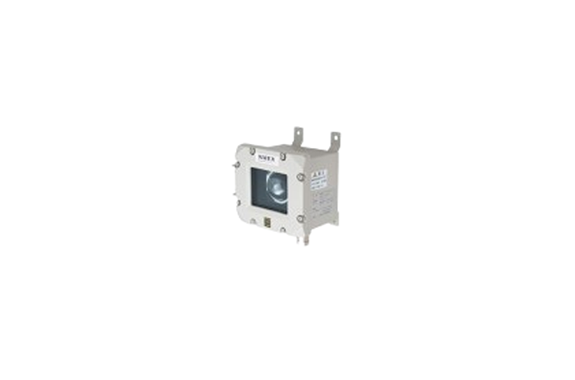

Miyaki CM500Ha NWEX Series

Manufacturer: MIYAKI ELECTRIC MFG.CO.,LTD.
Features
Specifications
| Model | NWEX-CM500H |
| Dimensions | 180mm (W) × 200mm (H) × 154mm (D) |
| Weight | Approx. 1.6kg |
| PoE (IEEE802.3af) | PoE (IEEE802.3af) 1.2W |
| Power Supply | PoE |
| Material | Aluminum Alloy (Aluminum Die-cast) |
| Operating Temperature | -20°C~40°C (Ambient: -20°C~50°C) |
| Humidity | 20~85% RH (Non-condensing, 10~90% RH) |
| Protection | IP66 |
| Explosion-proof | Exd II B + H2 T5 |
| Cable Connection Method | 14/3 Conductor (Flexible) |
