MIYAKI ELECTRIC MFG.CO.

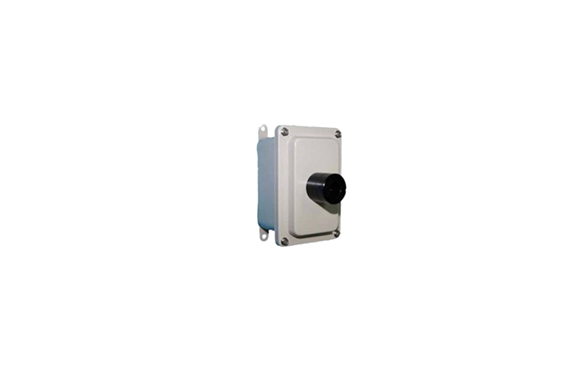

Miyaki ESN2 N Series
Manufacturer: MIYAKI ELECTRIC MFG.CO.,LTD.
Features
The device is DC24V compatible, providing flexibility by allowing users to choose between AC and DC power sources. This ensures seamless integration into various systems, offering versatility in power options.
Additionally, it offers 8 different sound colors to choose from. This feature enhances the ability to distinguish alerts based on the sound, making it easier to identify locations and specific situations. With this option, you can customize the system for your needs and improve overall alert accuracy.
Furthermore, the device supports continuous ringing, which contributes to extended operational life. This ensures that the device can perform reliably over an extended period, offering long-term reliability for your systems.
Specifications
| Model Specifications | |
| Model | ESN2-N |
| External Dimensions | W120mm × H180mm × D120mm (including protruding parts) |
| Weight | Approx. 1.2kg (including cable ground) |
| Power Supply | AC100~220V 50/60Hz, DC24V ±10% |
| Power Consumption | AC Type: 2.5VA, DC Type: 0.4W |
| Material | Box: Stainless Steel, Pipe: Brass, Yellow Brass |
| Paint Color | Munsell 5Y7/1 |
| Operating Temperature | 0~40°C |
| Humidity | 85% RH or less (non-condensing) |
| Explosion Protection | Exde II B+H T5 |
| Protection Grade | IP65 |
| Certification Number | TC18131 |
| Electronic Device | ZEX-50 |
| Sound Level | AC100~220V 50/60Hz 80dB, DC24V 80dB |
| Sound Selection | 8 types of sound selectable |
