Streamline your data collection process with our advanced solutions, designed for hazardous environments. The system allows for direct data collection using EXGP/EXPC, making data acquisition simple and efficient. Additionally, data can be easily collected via Ethernet, enabling seamless integration with your existing infrastructure. With the EXSC, you can easily input barcodes and 2D codes for faster processing. Furthermore, wireless LAN capability provides flexibility, allowing you to wirelessly collect data, enhancing both speed and convenience.
Specifications
| Explosion Protection Interface Specifications | |

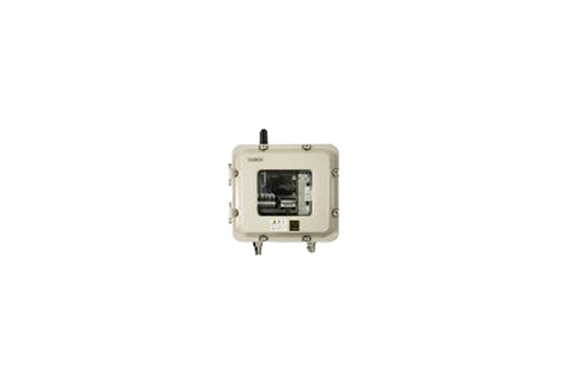

| Model | EXWPS-2XXX |
| Explosion Protection | Exdb [ia] II B T4 Gb |
| Power Supply | AC 100V 50/60Hz |
| Power Consumption | 35.4W (Max 41.5W Typ.) |
| Input Voltage | DC500V ≤10MΩ (charging power terminal) |
| Protection | IP65 (for indoor use) |
| Applicable Hazardous Locations | Zone 1, Zone 2 |
| Operating Temperature | 0°C to +40°C |
| Ambient Temperature | 85% RH or less (Non-condensing) |
| External Dimensions | W327-301H-207D (including connector) |
| Weight | Approx. 12kg |
| Material | Aluminum Alloy |
| Paint Color | Munsell 5Y7/1 |
| Explosion Protection Interface Specifications (continued) | |
| Interface Type | RS232C (Serial) |
| Specifications | RS232C |
| Port | 2 Ports |
| Supported Interface | IEEE802.3/802.3u, IEEE802.1x, RJ45 |
| Explosion Proof Scanner Specifications | |
| Model | EXSC-QB |
| Type | 2D QR Code (Zone1, Zone2) |
| Power | DC +3V, 0.6A |
| Bluetooth | Bluetooth Ver. 2.1 |
| Light | Red LED (Size: 640nm) |
| External Dimensions | Φ54 x 122mm, 2-directional port |
| Weight | 600g |
| Operating Temperature | 0°C to +40°C |
| Scanner Features | |
| Scan Codes | EAN-13, EAN-8, UPC/EAN, Interleaved2of5, CODE128, DataMatrix, QR Codes |
| Supported Profiles | SSP, HID (Bluetooth mode) |
| Connectivity Interface List | |
| Model | EXWPS-2010 |
| Interface | RS232C |
| Number of Connections | 1 |
| Model | EXWPS-2E10 |
| Interface | LAN |
| Number of Connections | 1 |
| Model | EXWPS-2E20 |
| Interface | LAN |
| Number of Connections | 1 |
