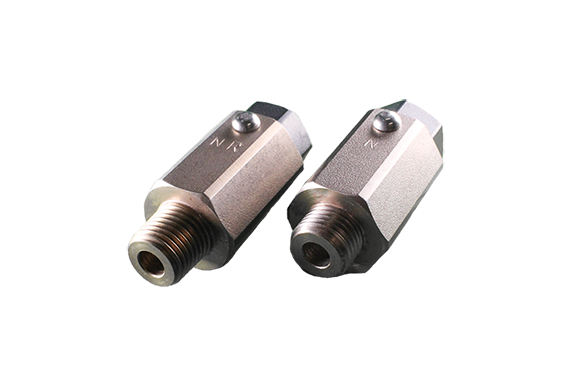

Miyawaki VB1/VB1R Blowdown Valves
Manufacture: MIYAWAKI Inc.
Model: VB1/VB1R
Features
Compact and lightweight design
Removes dirt and scales in the screen of steam traps
Typical applications
Suitable for using to the screen plug of steam traps
Dimensions/Weight
| Model | Size | Dimensions (mm) | Dimensions (in) | Weight | |||
| L | W | L | W | (kg) | (lb) | ||
| VB1 | 1/4” | 46 | 23 | 1.8 | 1.0 | 0,08 | 0.2 |
| VB1R | 50 | 2.0 | |||||
Specifications
| Model | Connection | Max. operating pressure | Max. operating pressure differential | Max. operating temperature | Body material | ||||
| Type | Size | (MPa) | (psig) | (MPa) | (psig) | (℃) | (℉) | ||
| VB1 | Screwed G (Parallel male screw) | 1/4” | 6,4 | 928 | 6,4 | 928 | 425 | 797 | Stainless steel SUS403 |
| VB1R | Screwed R (Tapered male screw) | ||||||||
Flow Rate
