Mizumoto Machine Mfg. Co.

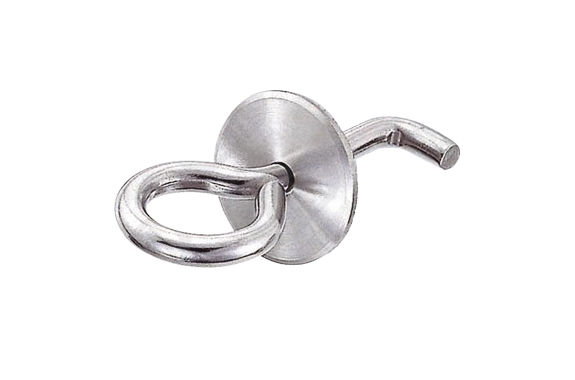

Mizumoto AP Series Anchor Plate
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: AP Series
Features
- It is for concrete embedding.
- It is installed on a concrete surface and used as a terminal hardware for chains, wires, and ropes.
- Comes with a dressing table.
Specifications
| Item No. | D | L | H | B | C | A | t | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AP-6 | 6 | 18 | 32 | 52 | 18 | 36 | 3 | 6.8 | 53 | 30 | 0.29 |
| AP-9 | 9 | 29 | 54 | 66 | 27 | 50 | 4 | 10 | 151 | 90 | 0.88 |

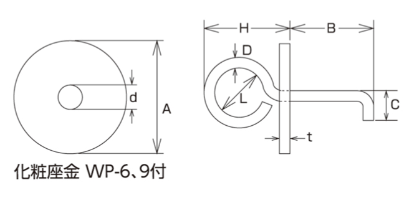

Dimensions (mm)
