Mizumoto Machine Mfg. Co.

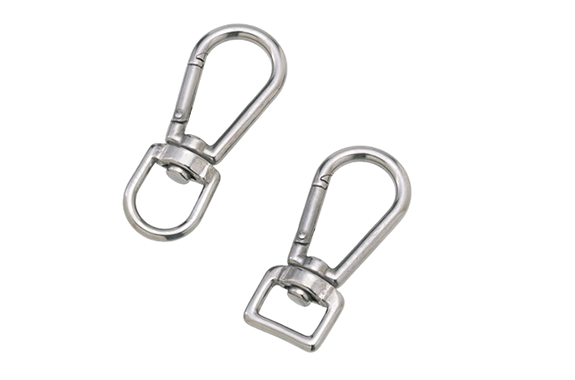

Mizumoto BL Series Snap Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: BL Series
Features
- The eye part rotates, so it doesn’t get tangled when connected.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product Number | D1 | D2 | L | W | S | H | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| BL-4 | 4 | 3 | 55 | 23 | 6.5 | 8.5 | 11.5 | 12 | 30 | 0.29 |
| BL-5 | 5 | 4 | 78.5 | 32 | 10 | 13.5 | 14.5 | 45 | 60 | 0.59 |
| BL-6 | 6 | 4.5 | 84.5 | 34 | 9 | 17.5 | 18 | 45 | 80 | 0.78 |
| Product Number | D1 | D2 | L | W | S | H | d | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| BL-5V | 5 | 4 | 77 | 32 | 10 | 12 | 16.5 | 30 | 60 | 0.59 |
| BL-6V | 6 | 4.5 | 76 | 34 | 9 | 9.5 | 19 | 45 | 80 | 0.78 |

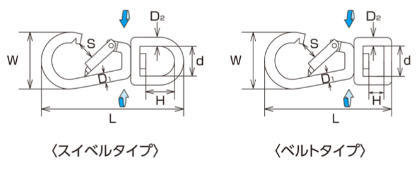

Dimensions (mm)
