Mizumoto Machine Mfg. Co.

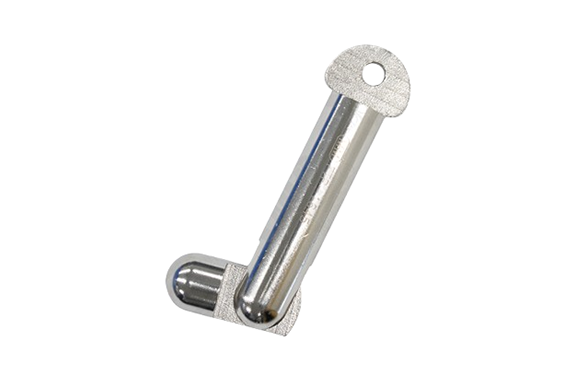

Mizumoto FTP Series Toggle Pin
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: FTP Series
Features
- The caulking pins are not exposed to the surface, so it has a clean appearance.
- For outfitting ships and fixing parts.
Specifications
| Model | D | B | L | d | Weight (g) |
| FTP-0620 | 6 | 10 | 20 | 3 | 8 |
| FTP-0825 | 8 | 12 | 25 | 4 | 18 |
| FTP-0835 | 8 | 12 | 35 | 4 | 22 |
| FTP-1030 | 10 | 14 | 30 | 4 | 34 |
| FTP-1035 | 10 | 14 | 35 | 4 | 37 |
| FTP-1235 | 12 | 18 | 35 | 5 | 58 |
| FTP-1245 | 12 | 18 | 45 | 5 | 67 |
| FTP-1645 | 16 | 24 | 45 | 6 | 131 |
| FTP-1850 | 18 | 26 | 50 | 7 | 186 |
| FTP-2555 | 25 | 38 | 55 | 10 | 446 |

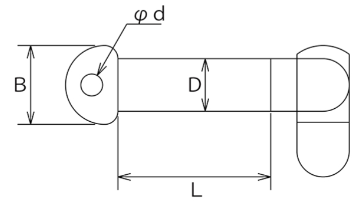

Dimensions (mm)
