Mizumoto Machine Mfg. Co.

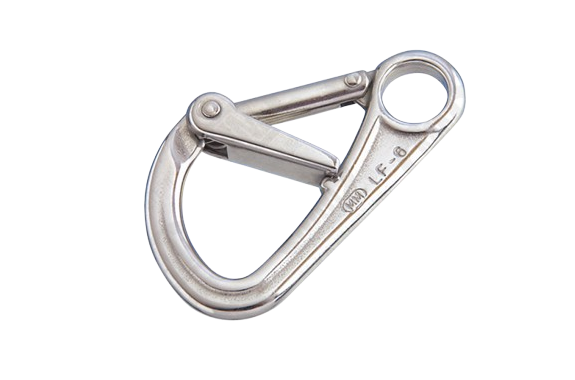

Mizumoto LF Series Rock Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LF Series
Features
- It is a hook that will not open unless it is made in two movements.
- It is used as a connecting fitting.
Specifications
| Item | D (in) | D2 (in) | L (in) | W (in) | d (in) | S (in) | R (in) | T1 (in) | T2 (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LF-6 | 7.5 | 3.5 | 67 | 40 | 12 | 12 | 5 | 5.7 | 6 | 40 | 80 | 0.78 |
| LF-8 | 9.5 | 5 | 91 | 52 | 16 | 18 | 8 | 8 | 8 | 98 | 120 | 1.18 |
| LF-10 | 13.5 | 6 | 108 | 64 | 20 | 19 | 9.5 | 10 | 10 | 185 | 180 | 1.76 |

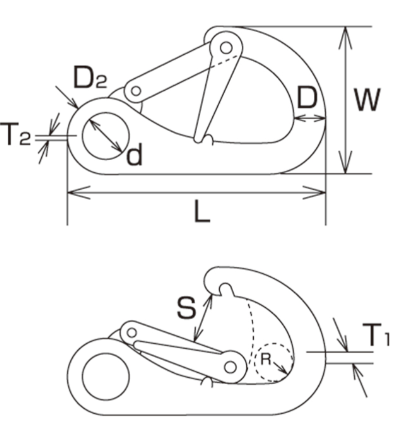

Dimensions (mm)
