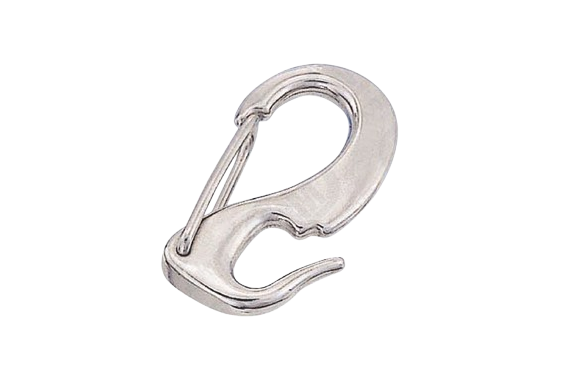

Mizumoto M Series Open Magatama Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: M Series
Features
- Use by beating with a hammer.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | L | W | S | R | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| M-1 | 48 | 24 | 8 | 3.5 | 6 | 5 | 18 | 20 | 0.2 |
| M-2 | 67 | 35 | 11 | 5.5 | 8 | 7 | 52 | 40 | 0.39 |
| M-3 | 80 | 41 | 14 | 7 | 9 | 8 | 90 | 50 | 0.49 |
| M-4 | 91 | 48 | 18 | 8.5 | 8 | 9 | 126 | 60 | 0.59 |

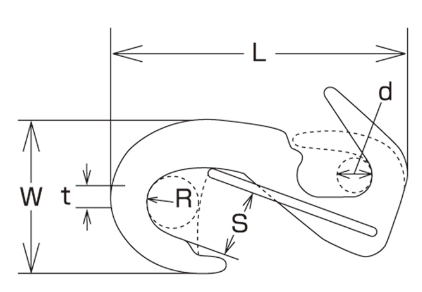

Dimensions (mm)
