Mizumoto Machine Mfg. Co.

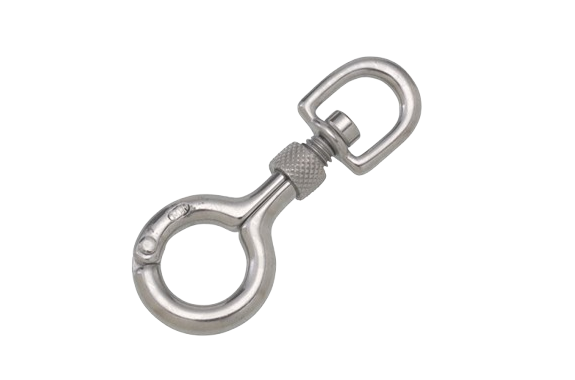

Mizumoto ON Series Open Nascan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: ON Series
Features
- The eye part rotates, so it doesn’t get tangled when connected.
- By unscrewing the nut, the eye can be opened and closed.
- The eye opens wide.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Product No. | D | L | H | W | S | d | Thread | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| ON-1 | 5 | 56 | 8 | 13 | 11 | 10 | M-6 | 16 | 7 | 0.07 |

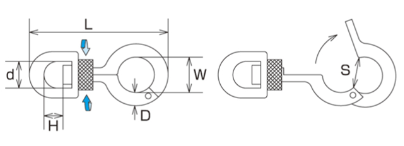

Dimensions (mm)
