Mizumoto Machine Mfg. Co.

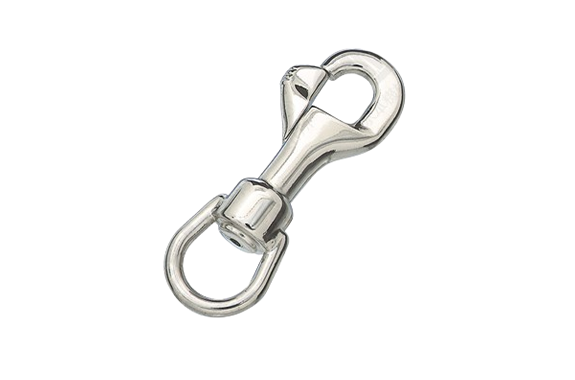

Mizumoto RNB Series Nascan (Nickel Plated)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RNB Series
Features
- The eye part rotates, so it doesn’t get tangled when connected.
- It opens with one touch, so you can easily join it.
- It is often used for pet mooring chains.
Specifications
Material: Zinc Die-Cast
| Part No. | D | L | W | S | H | d | t | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | |||||||||
| RNB-1 | 4.5 | 77 | 23 | 9 | 14 | 16 | 4.5 | 35 | 20 | 0.2 |

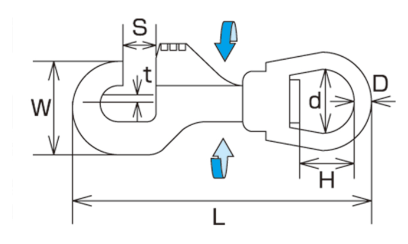

Dimensions (mm)
