Mizumoto Machine Mfg. Co.

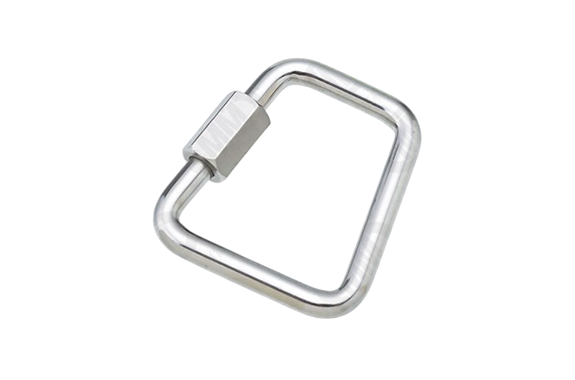

Mizumoto TRH Series Trapezoidal Ring Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TRH Series
Features
- It can be easily opened and closed by simply turning the nut.
- Attached to a terminal such as a chain, as a joint fitting.
Specifications
| Part No. | D | S | L | W1 | W2 | W3 | E | Weight (g) | Reference Working Load (kgf) | (kN) |
| TRH-7 | 7 | 6 | 46 | 55 | 31 | 17 | 7.5 | 63 | 200 | 1.96 |
*Single-thread type (opens and closes faster and smoother than double-screw type)

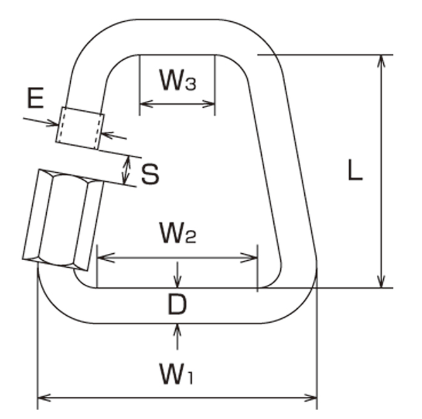

Dimensions (mm)
