Mizumoto Machine Mfg. Co.

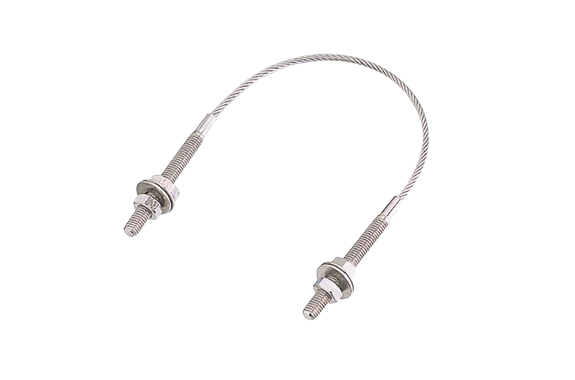

Mizumoto UW Series Wire U Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: UW Series
Features
- By bending it into a U-shaped shape and using it, pipes can be fixed to walls and floors.
- As a fixing fittings for pipes to walls, floors, and columns.
- With 4 hex nuts and 4 round washers
Specifications
| Part No. | D | L | T | Thread Size | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | ||||||
| UW-1050 | 1 | 215 | 40 | M-4 | 11 | 20 | 0.20 |
| UW-2050 | 2 | 215 | 40 | M-5 | 20 | 30 | 0.29 |
| UW-2075 | 2 | 275 | 40 | M-5 | 21 | 30 | 0.29 |
| UW-3100 | 3 | 365 | 50 | M-6 | 42 | 50 | 0.49 |
| UW-3150 | 3 | 495 | 50 | M-6 | 47 | 50 | 0.49 |
*With 4 hex nuts and 4 round washers
*The length of the wire can be made separately in addition to the above. Please inquire. (Please specify the dimension in the wire diameter × the total length.) ）

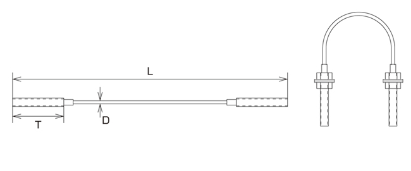

Dimensions (mm)
