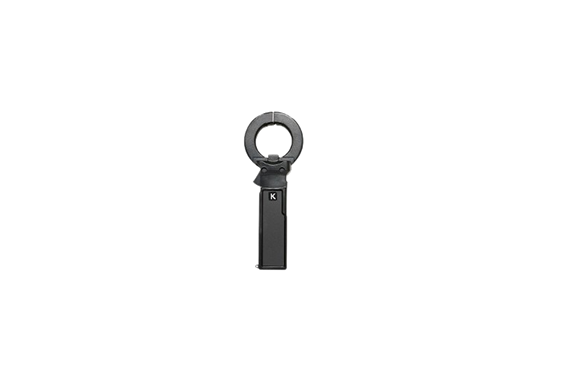

Multi CT Series Clamp-on AC Current Sensor
Manufacturer: Multi Measuring Instrument Co., Ltd.
Model: CT-40.
Features
For general purpose alternating current measurement CT for current measurement of trunk lines.
Specifications
| Applicable current | AC 1A～600A |
|---|---|
| Maximum allowable current | AC 720A |
| Nominal Current Ratio | 3600:1 |
| Example output | AC 25.1ｍV±2％（10A/10Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Max φ40mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm single shield wire (φ3mm) |
