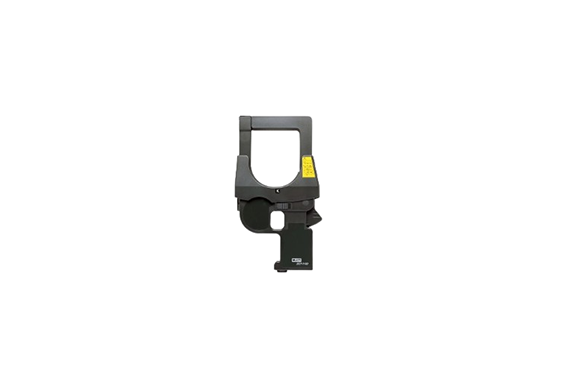

Multi CT Series Clamp-on AC Current Sensor
Manufacturer: Multi Measuring Instrument Co., Ltd.
Model: CTS-3000.
Features
For ultra-large diameter alternating current measurement CT for current measurement of main lines
Specifications
| Applicable current | AC 1A～3000A |
|---|---|
| Nominal Current Ratio | 2000:1 |
| Example output | AC 51.2ｍV±2％（10A/10Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Up to 108×128mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 1m single core shielded wire (φ3mm) |
| Dimensions and weight | W194×H341.5×D52mm Approx. 1800g |
